Access Door Controllers
Supplier
Category
Security equipment
Color
Family
Car parking systems
Door entry access control
Control systems
Brand
WatchNET
Specifications
Description

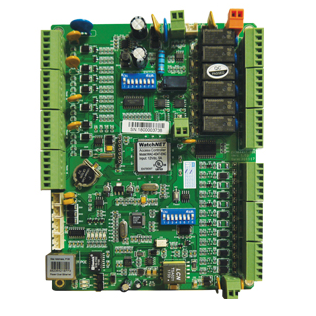

WAC Access Controllers are designed to be self-contained controllers ideally suited for small and medium sized companies.
Packed with rich features, this product takes care of a variety of control and automation functions in addition to basic access
control requirements of any facility.
The models have been designed for specific access requirements in any facility such as access by card and exit by push button.
Based on the needs on site, the designer can choose from available models capable of controlling access to 1, 2, 4 or 8 doors
(per panel).
The controllers communicate through the traditional RS485 Bus or TCP/IP. The controllers are capable of using industry standard
26-72 bit Wiegand readers as well as other related technologies.
The 2 Door controller can directly power up to 2 door strikes, when using maglocks an additional power supply is needed. 4 door
or 8 door controllers require an additional power supply to operate maglocks and/or strikes.
Note local fire and building codes may apply when using maglocks.
Lockable cabinet and control board power supply included with the Access Control Kits.
WatchNET provides ease of installation with a wiring diagram printed on the cabinet door.
Weatherproof and IP rated controller cabinets are available.
Access Door
Controllers
www.watchnetaccess.com
Division of WatchNET Inc.
WAC-2D2T-ENC
WAC-4D4T-ENC
WAC-4D8T-ENC
WAC-8D8T-ENC
Features:
Supports RS232 / RS485 / TCP/IP
Cards holder capacity: 30,000 / 100,000 (online mode)
Transactions storage: up to 270,000
Supports keypad readers for requiring a PIN when entering a door
Supports up to 500 temporary cards with security settings
Up to 365 holidays 15 Time Zones for each door
Supports both POE & POE+ (Network based 10/100M)
24 sets of Flow Control
Local and Global Anti-Pass back
Programmable Door Status
Always Closed (Can be opened by Supervisor cards only)
Multiple types of Events
Data can be kept for 180 days without power
Backup Battery: POE will offer a socket for backup battery
Low Voltages protection: Power off during 10.6V,
stop to charge during 13.8V
CE, FCC, UL, RoHS approval
See More
See less
Notes
Salient Features of WatchNET Controllers:
Integrated Security Solution feature
Access Control
Multi maps, Zoom In/Out
Multi modes: Card, PIN, Fingerprint, Face Recognition
Transaction will bring the map and cameras
Intrusion (Support: DSC, Rocknet / ProSYS, Pima)
CCTV (Compatible with Axis, Hikvision, WatchNET & CP PLUS...)
1. Smart Mobile APP
Compatible with Android, IOS
Management, Remote Control, Transactions...
2. POE
POE, POE+
Backup battery: POE will offer a socket for backup battery
Low Voltages protection: Power off during 10.6V, stop to charge during 13.8V
Network based, 10/100 M
3. 3 Layer Memory Structure & Processor
32 bits ARM Cortex M4 processor
3 Layer memory structure: SDRAM, RAM, Flash
Download 30k card users, it will take less than 15 seconds
4. Supervisor
DIP Switch to enable or disable SUPERVISOR
Once the wire is cut, the system will alarm
6. Multi Language
English, Hebrew, Spanish, Russian, Arabic
Customer can add his own language by Language Editor of Application
7. Multi Database, Oracle as an option
Supports Oracle database, much more stable during enterprise class installations
Supports MS_SQL
Supports MS_Access also, just for small installations
8. Flexible
Multi connecting mode: TCP/IP, RS232, RS485
9. Select Events to Save
If you would not like to see some unconsidered transactions, such as Door Relay Active..., you can choose "Not saved"
10. Events Drive Alarm / Lockdown
Every event can be setup as the condition to active some relays or close some doors and open some rest doors
11. 8 Bytes card number length
Up to 8 bytes card number length, much more security
Supports all Wiegand readers from 26 bits to 72 bits
12. Supervisor / Manager card
Boss card: can open any door anytime. Double swipe will switch the door status: NO / Normal
Manager card: will not be limited by Anti-Pass back. Double swipe will switch the door status: NO / Normal
13. Handicap card
Normal card: The door will keep open normal seconds, like 5 seconds
Handicap card: The door will keep open longer, like 15 seconds
v
v
v
14. Emergency card
Emergency card can open all doors when the system crashed
15. Multi-Mode to open door
Card / PIN
Card + PIN
Card / Fingerprint
Card + Fingerprint
Multi cards: Up to 8 cards in short time, and release all cards after 8 seconds waiting
16. Master / Slave cards to open the door
Everybody can setup a Master card for him
Only this user and his master come here together to open the door
17. Groups cards to open the door
Up to 4 groups
Several cards of each group
18. Confirm by Monitor Center
Only confirmed by center, then door will be open
Special for Bank Money warehouse
19. Private PIN
Everybody will have a private PIN: 4 to 8 digitals
Private PIN will work as same as his card
System will show his name when he use his PIN
20. Armed / Disarmed
When all people leave, swipe card and press "Armed Code" from door reader, the system will be armed
When the first people come, swipe card and press "disArmed Code", the system will be disarmed
21. Email notification
Up to 3 pcs target email box for every transaction
System will send email to these email box when the setting events happen
22. Calculator for special area
Special for some place to calculate different kind of worker
Show these worker number on display
23. Popup
Popup for each event
Different direction and symbol mention
Different color for each event
Different sound for each event
24. Operator
Different management level
Matched with doors
Matched with department
25. Different view in different client
Same view for some clients
Different view for each client if you want
Only show these panels which is connected to this PC
See More
See less
-
Weight4.5 KG
-
Length40.3 cm
-
Diameter38.4 cm
-
Unitacre
-
Width7.2 cm
-
MaterialMETAL
