19” RACK ENCLOSURE
Supplier Category
Electrical equipment
Family
Multimedia systems
Brand
ATIES
ADD TO QUOTATION
Specifications
Description

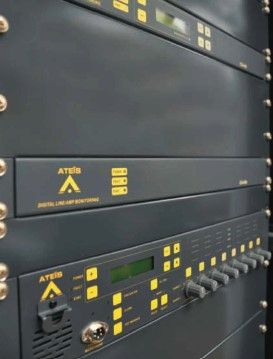

The EM-S equipment rack is a highly durable and exible,
standard 19” enclosure for ATEIS PAVA processors, ampli -
ers and power supply units.
The modular design of the rack enables exible assembly
and mounting of devices according to various project and
on-site requirements. EM-S racks are available as standard
19” enclosures with 600mm depth. The height of the
assembled rack with equipment can vary from 18U to 42U
rack units (31.5 to 73.5 inches).
The rack manufactured out of cold rolled steel (SPCC
grade) has a highly sturdy, welded structure, which
provides reliable support with a static loading capacity of
500 kg. A powder coat nishing gives the rack surface a
rich texture. Adjustable casters at the bottom of the rack
cabinet enable convenient relocation and installation of
the rack. The rack cabinet can be secured in place by a
xing mechanism behind the casters.
The front, rear and side panels are easily removable to
allow installation and wiring of equipment in the enclosure.
Removable panels provide easy access to the equipment
for maintenance and repair.
The front door is made of tempered glass, which provides
the strength and thermal resistance for installation of the
rack in tough environments. Vented edges at the front
panel and a vented rear door allow su cient air intake
and ventilation to the rack enclosure.
The top panel is attached with an exhaust fan to expel hot
air from the rack enclosure while simultaneously protecting
the equipment from foreign objects. This prevents
excess heat from degrading the performance of the
electronic equipment in the rack enclosure.
The bottom panel provides complete protection
against rodents and insects from entry into the
enclosure. There is provision for cable entry from
both the top and bottom panels. Rack shelves, rails
and other accessories can be mounted as per requirements.
The rack unit complies with international standards
for basic dimensions of rack cabinets and suits, and
mounting conditions, such as ANSI/EIA RS-310-D;
DIN41491; DIN41494; IEC297-2; and
GB/T3047.2-92.
The dimensions of the rack are also compliant with
the European Telecommunication Standards
Institute (ETSI) standards, which specify rack
cabinets for telecom applications
See More
See less
Notes
RACK MODEL NO.
BLANK PLATE/FILLER PANEL MODEL NO.
18U - 18U Rack (19” ; 600 mm deep) with accessories
22U - 22U Rack (19” ; 600 mm deep) with accessories
27U - 27U Rack (19” ; 600 mm deep) with accessories
32U - 32U Rack (19” ; 600 mm deep) with accessories
37U - 37U Rack (19” ; 600 mm deep) with accessories
42U - 42U Rack (19” ; 600 mm deep) with accessories
*1 U = 1.75 inches (44.45mm)
1U - 1U Steel Blank Panel (19”)
2U - 2U Steel Blank Panel (19”)
3U - 3U Steel Blank Panel (19”)
9U - 9U Steel Blank Panel (19”)
11U - 11U Steel Blank Panel (19”)
See More
See less
-
Unitunit
