SINEWAVE POWER AMPLIFIERS
Supplier Category
Electrical equipment
Family
Multimedia systems
Brand
ATIES
ADD TO QUOTATION
Specifications
Description
There are two types of Power amplifier units in the SPA-PAVA product range.
The overall power rating is 500W &/or 300W watts. The power amplifiers can be
set to 100 V, 70 V and 16-4 Ohm output tappings. They have short-to-ground,
short-circuit detection and line-impedance surveillance up to 5% deviation using
the DIVA8 and IDA8 range of products for loudspeaker-line surveillance.
Main Characteristics
• 2 audio outputs (100/70 / 8 Ohm outputs
selectable)
• Supervision of amplifiers using DIVA or
IDA8 Controllers
• Advanced audio processing for each
amplifier channel using DIVA8 or IDA8
systems
• Amplifier supervision and spare amplifier
switching through DIVA8 or IDA8 systems
• Loudspeaker line and loudspeaker
supervision through DIVA8 or IDA8 systems
Conrols & Indicators
• Status Indicator for Power, Protection,
Signal & Clip
• Potentiometer for Gain adjustment
• Front Chasis Mains Switch for Power
Interconnections
Rear
• Mains Input
• Fuse
• 100V, 70V, 16-8Ohm Outputs
• Input 1 0dB Line Level Audio
• Input 2 100V Audio (for connecting as
Booster Amplifier)

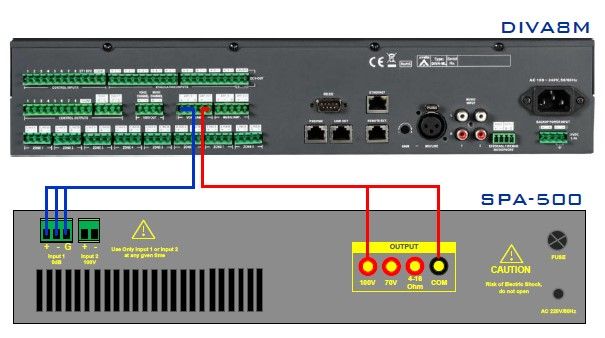

The power amplifiers receive line-level input signals from the DIVA8 and IDA8
controllers and slaves. The display shows the VU-meter reading, when the EN54-16
default switch is inhibited.
